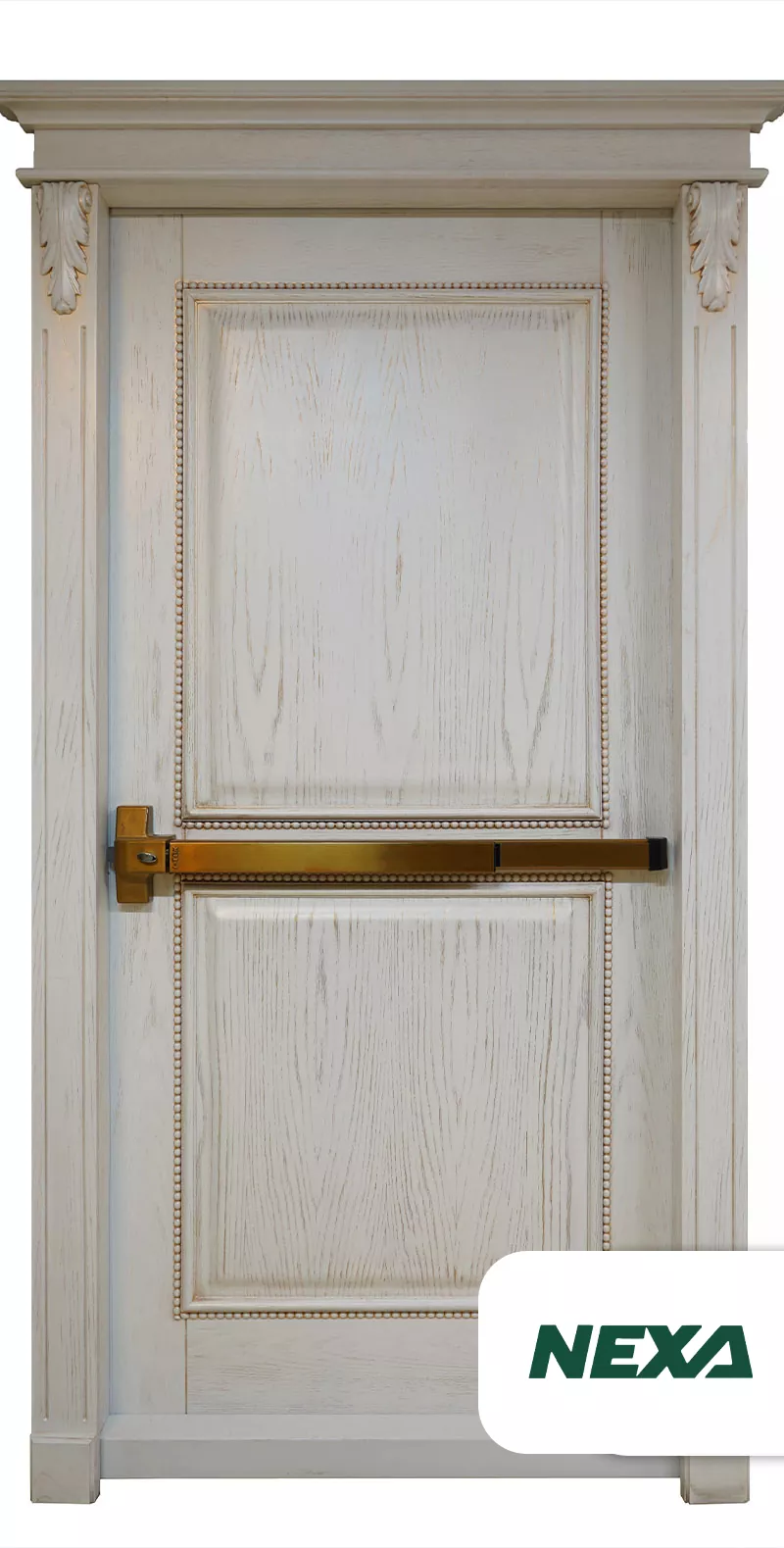

Decorative Fire-Rated Door with White Wash Design

NEXA Decorative Fire-Rated Door – White Wash Design

The NEXA Decorative Fire-Rated Door (White Wash Design) combines modern aesthetics with certified fire protection, offering both safety and elegance for premium architectural spaces.
Tested and certified by Efectis International (Turkey) and the Building and Housing Research Center (BHRC), this door provides 90 minutes of fire resistance and full compliance with international fire safety standards.

It is suitable for installation in all types of projects, including escape stairwells, server rooms, and electrical rooms, ensuring both functionality and visual harmony.

Technical Specifications

Structure:

• Door Leaf: Galvanized steel sheet, 1.0 mm thickness

• Frame: Galvanized steel profile, 2.0 mm thickness

Decorative Surface:

• Material: MDF, glass, or stone slab panels

• Thickness: 8–12 mm

• Design: White Wash decorative finish for a modern architectural look

Core Insulation:

• Material: Fire-rated rock wool, 120 kg/m³ density

• Function: Heat and sound insulation with certified fire resistance

Reinforced Inner Frame:

• Steel tubular internal reinforcement to resist bending and twisting under high temperatures

Lock and Handle Reinforcement:

• Galvanized steel reinforcement plate behind the handle and panic bar mounting area

Hinges:

• Quantity: 4 heavy-duty cylindrical steel hinges (three-piece design)

• Connection: Welded for maximum strength

Surface Finish:

• Coating: Electrostatic powder paint, 80 microns thickness

• Curing Method: Conveyor (rail) oven system ensuring even coating and durability

• Color: Customizable according to project requirements

Sealing System:

• Fire- and smoke-seal gaskets with 500% expansion rate, certified by the fire department

Hardware:

• I-TEK panic push bar with back handle for emergency exits (non-locking mechanism)

Door Closer:

• Dual-speed hydraulic door closer with two adjustable speed zones

Threshold:

• Integrated smoke- and fire-sealed steel threshold

Accessories:

• 8 plastic cover caps for screw holes, enhancing aesthetics and protection
