Standard Fire-Rated Metal Door in Orange Color

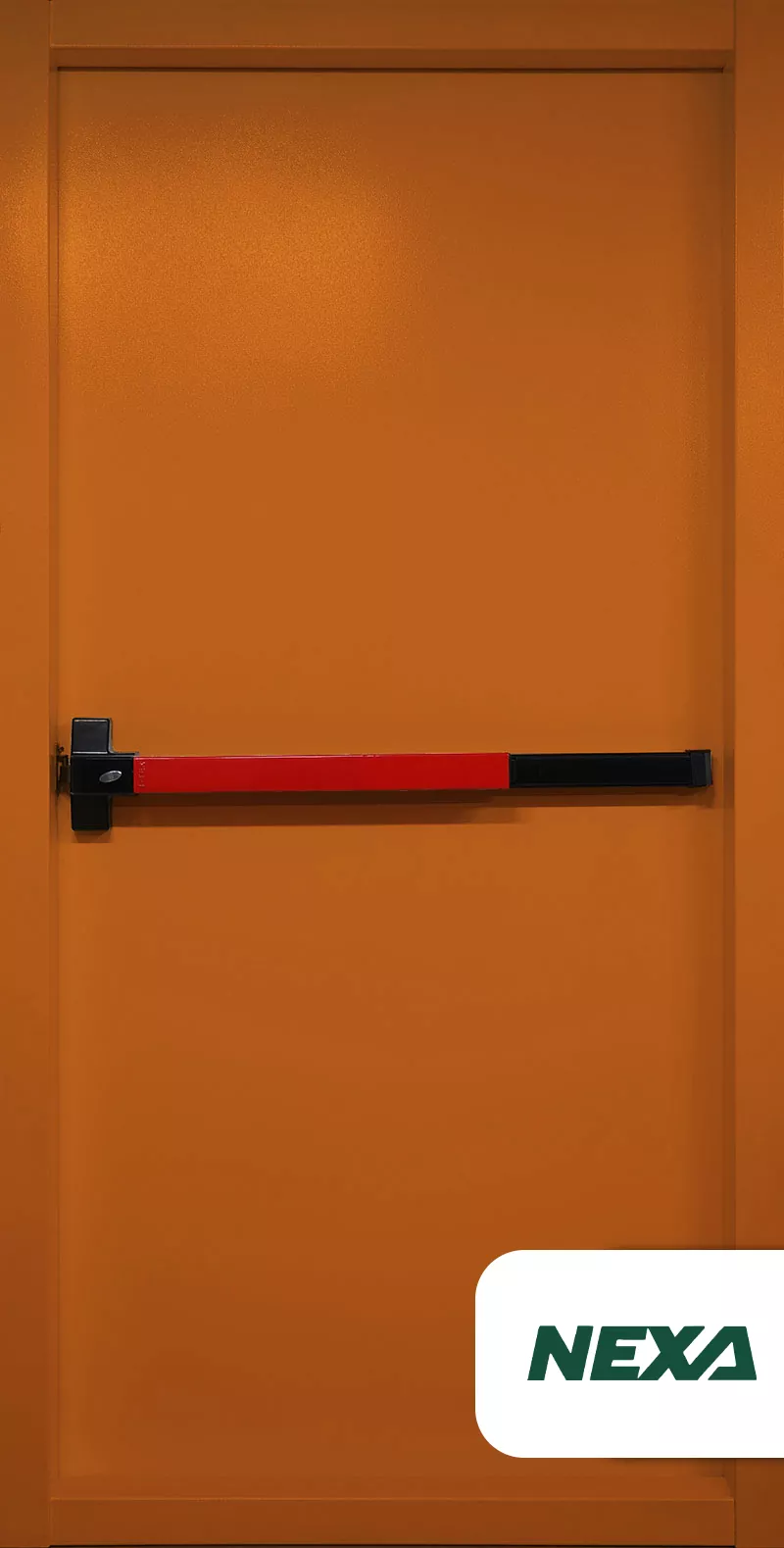

NEXA Standard Fire-Rated Steel Door – Orange | Certified Safety with Modern Industrial Design

The NEXA Orange Fire-Rated Steel Door is a fully certified, high-performance fire door designed for both residential and public buildings.
Tested and approved by the Fire Department, this model offers 240 minutes of certified fire resistance, verified by Efectis Turkey Laboratory, and technical certification from the Building & Housing Research Center (BHRC) of Iran.

It can be installed without limitation on project type or number of floors, making it ideal for parking structures, hospitals, commercial complexes, offices, and residential towers.
The color of handles and panic bars can be customized to match your project’s design.

The vibrant orange color enhances visibility in emergency exits and stairwells, ensuring quick identification of evacuation routes while adding a bold, modern touch to industrial interiors.

Body and Frame Structure

Door Leaf:

• Constructed from galvanized steel sheet, 1.0 mm thick

• Reinforced with integrated mechanical joints for maximum durability

Frame:

• Made of galvanized steel sheet, 1.25 mm thick

• Welded structure for long-term strength and perfect installation alignment

Core Insulation:

• IzoCell 505 advanced nano-engineered fire insulation with cellular network design

• SABIC thixotropic fire-retardant resin for superior flame resistance

• Internal steel reinforcement skeleton for high mechanical stability

• Lateral stiffeners to prevent twisting or deformation

• Double steel reinforcement plates at lock, handle, and hinge zones for improved fastening

Hinges and Connections

• Three heavy-duty triple-joint cylindrical steel hinges, designed for fire-rated and vault-grade applications

• Fully welded joints for increased mechanical reliability

• Reinforced hinge zones for enhanced load-bearing strength

Surface Preparation and Coating

Before painting, all steel components undergo:

• Grinding, degreasing, and acid washing to maximize adhesion and corrosion resistance

Paint System:

• Electrostatic powder coating, oven-cured for uniform finish

• 80-micron coating thickness, applied with conveyor (rail) technology

• Resistant to scratches, moisture, and UV radiation

• Custom RAL color options available based on project needs

Standard Color: RAL 2008 – Industrial Orange

Fire and Smoke Sealing System

• Certified intumescent smoke seals, expanding up to 500% when exposed to heat

• Integrated steel fire-rated threshold for complete sealing against smoke and flames

Door Closer

• Two-speed hydraulic overhead closer (China-made)

• Dual-valve design allows precise adjustment of opening and closing speeds

• Ensures smooth and silent operation in high-traffic environments

Additional Features

• Eight decorative plastic caps used to cover mounting holes for a clean aesthetic finish

• Fully symmetrical design – can be installed as either left-hand or right-hand opening
