Biscuit Design Fire-Rated Door

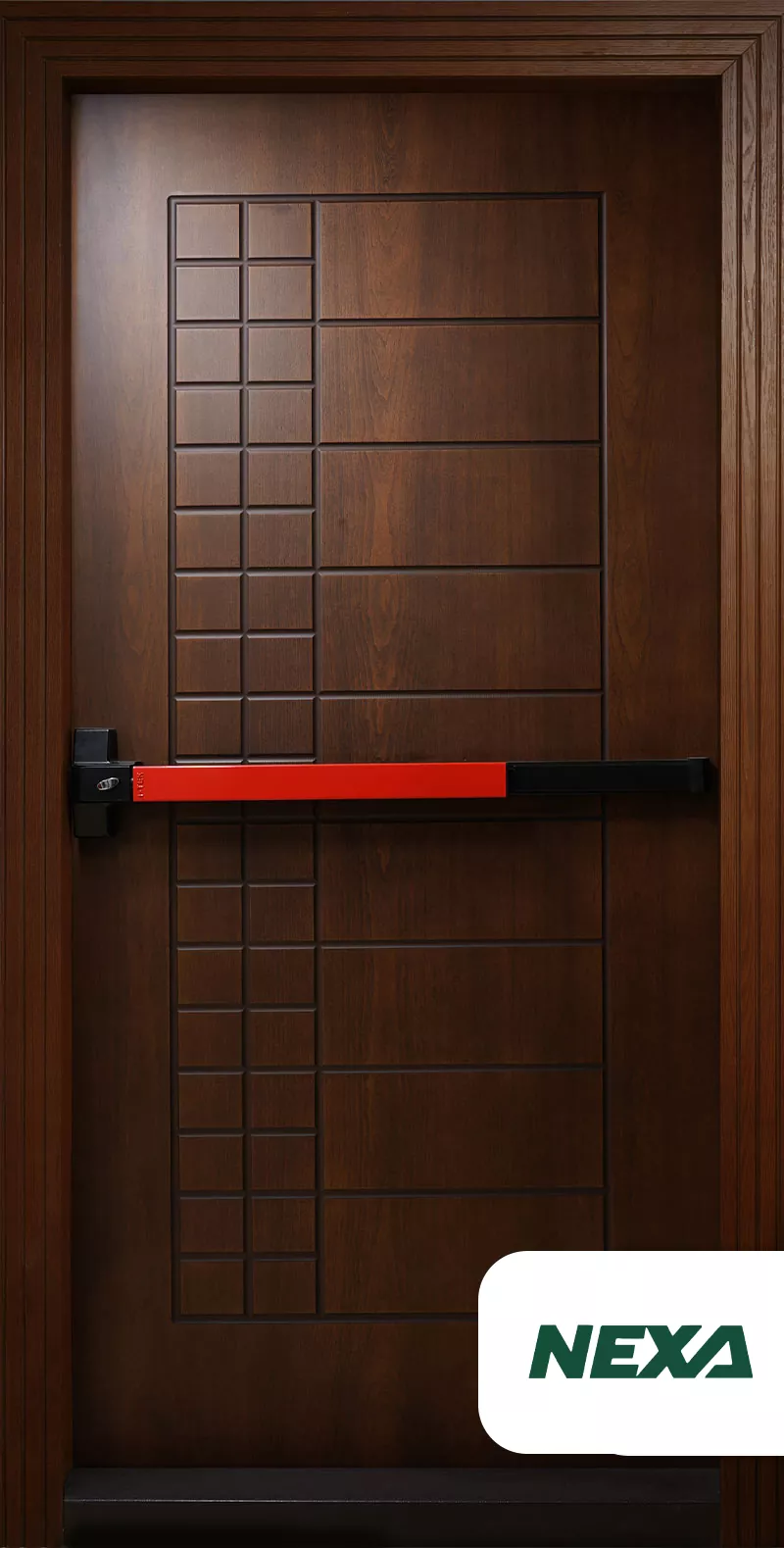

NEXA Biscuit-Pattern Decorative Fire-Rated Door

The NEXA Biscuit-Pattern Fire Door combines refined decorative design with advanced fire protection engineering, ensuring both safety and aesthetic excellence for modern architectural environments.
Certified by Efectis International (Turkey) and the Building and Housing Research Center (BHRC), this model provides 90 minutes of fire resistance and complies with all international safety standards.

Suitable for escape stairwells, server rooms, and electrical control areas, it offers a perfect balance between durability, performance, and visual appeal.

Technical Specifications

Structure and Frame:

• Door Leaf: Galvanized steel sheet, 1.0 mm thickness

• Frame: Galvanized steel profile, 2.0 mm thickness

Decorative Surface:

• Material: MDF, glass, or stone slab decorative panels

• Thickness: 8–12 mm

• Design: Elegant biscuit-textured surface with soft geometric relief patterns

Core Insulation:

• Material: Fire-rated rock wool, 120 kg/m³ density

• Function: Heat and sound insulation; certified fire protection layer

Reinforced Inner Frame:

• Tubular steel internal skeleton to enhance mechanical strength and resist bending or twisting

Lock Reinforcement Plate:

• Galvanized steel plate behind handle and lock area for secure hardware mounting

Hinges:

• Quantity: 4 heavy-duty cylindrical steel hinges (three-piece design)

• Connection: Fully welded for maximum structural stability

Surface Finish:

• Paint Type: Electrostatic powder coating, 80-micron thickness

• Curing: Standard oven baking with conveyor technology for even finish

• Color Options: Fully customizable upon request

Sealing System:

• Fire- and smoke-seal gaskets with 500% expansion rate, certified by the Fire Department

Hardware:

• I-TEK panic push bar with back handle for emergency exits (non-locking system)

Door Closer:

• Dual-speed hydraulic closer with two adjustable motion ranges

Threshold:

• Integrated steel threshold — smoke- and fire-sealed, one-piece construction

Accessories:

• 8 plastic screw-hole covers for a clean, finished appearance
