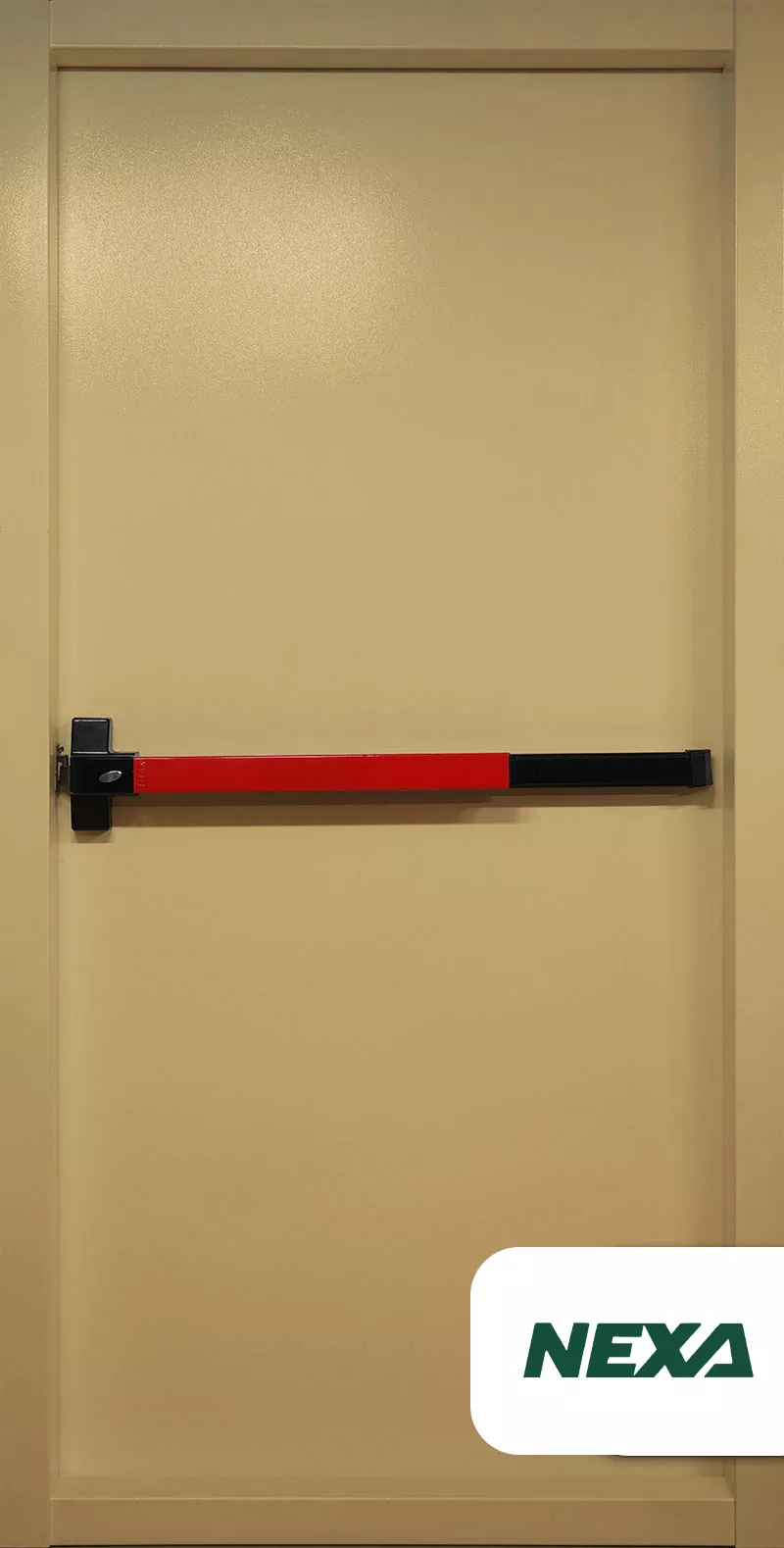

Beige Fire-Rated Metal Door with Brownish Tint

NEXA Fire-Rated Steel Door — Beige Brown (RAL 1001) | Certified Safety with Elegant Design

The NEXA Beige-Brown Fire-Rated Steel Door is a premium safety solution that combines aesthetic harmony, engineering precision, and international fire-resistance certification.
This model has achieved official Fire Department approval, 240-minute fire resistance, and certified test reports from Efectis Turkey and the Iranian Building and Housing Research Center (BHRC).

Designed for universal installation, it can be used in all types of residential and public projects, including multi-story parking lots, hospitals, commercial complexes, offices, and apartment buildings — with no limitation on the number of floors or project scale.

The handle and panic bar colors are fully customizable, and the door color can be selected according to your interior or façade design palette.
The standard color code for this model is RAL 1001 (Beige Brown), offering a warm, refined tone that complements both classic and contemporary environments.

Body and Frame Structure

Door Leaf:

• Made of galvanized steel sheet, thickness 1.0 mm

• Reinforced with integrated mechanical joints to enhance structural rigidity

Frame:

• Constructed from galvanized steel sheet, thickness 1.25 mm

• Fully welded for maximum durability and long-term strength

Internal Insulation:

• IzoCell 505 advanced nano-engineered fire-insulation core with cellular structure

• Incorporates SABIC fire-retardant thixotropic resin

• Internal reinforcement skeleton for mechanical stability

• Side stiffeners prevent twisting and bending near hinge zones

• Double steel reinforcement plates behind handles, panic bar, and hinges for secure fastening under stress

Hinges and Connections

• Equipped with three triple-joint cylindrical steel hinges, fire-rated and designed for safes and heavy doors

• Fully welded hinge connections to maximize structural integrity

• Reinforced hinge-side frame to prevent distortion under load

Surface Preparation and Coating

Before painting, all metal parts undergo:

• Grinding, degreasing, and acid washing to enhance coating adhesion and longevity

Paint System:

• Electrostatic powder coating, oven-baked under standard curing temperature

• 80-micron uniform coating applied via conveyor-line technology

• Resistant to UV, corrosion, and impact

• Custom RAL colors available upon request

Sealing System

• Intumescent fire and smoke seals, certified by the Fire Department

• Expansion rate: 500 % when exposed to heat

• Ensures complete smoke and flame isolation during fire events

Door Closer

• Two-speed hydraulic overhead closer (China-made)

• Dual adjustable valves allow precise control of closing speed in two stages

• Provides smooth, safe, and silent operation

Threshold and Accessories

• Integrated steel fire- and smoke-proof threshold

• Eight plastic decorative caps used to cover screw holes for a clean finish

Symmetrical and Reversible Design

This door is perfectly symmetrical, allowing installation as either left- or right-hand opening.
All components — including hinges, locks, and handles — are dual-directional, offering complete flexibility and simplified installation at the project site.
